Friday, June 26, 2009

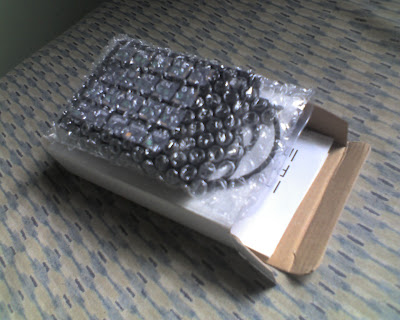

MyFrog KeypadMmod USB


Adapted an Intelligent Design to suit me. Wrote a large Keyhandling Macro 1,340 lines of manicured code (lots of hierarchy trees)

My new keyboard kicks ass! Cost of materials was about $30, and writing the autohotkey macro took a lot more time than I'd planned,

but after I gave up on some pesky keys, namely 000 and a num lock key that sends no scancodes (grrr), steady progress towards completion

was the order of the evening. Cutting out the stickers for the keys: not a chore, but drenched in awesome. (Typed completely with my pad)

Okay, back to deluxe Ergo USB for the recap and the blow by blow: (My new MS 4000 Keyboard is supremely hackable with a little harmless, undoable XML configuration file editing!

So, first, checkout (I'll Wait)
Cool how they state that the vast majority of hunt and peckers are super suited fot this. Also I notice that one-handed and two dont mentally overlap, Two hand travelling H&P Qwerty in the dark is not impeded AT ALL. it's like your wing and index fingers are some other kind of crazy hands.

Cost of Mod:
HW $17 from Amazon,
<$1 Sheet of Sticker-Backed Paper
< $1 of Ink. Time for Mod: Few hours for the software (one big elegant AutoHotKey macro ) Few Hours graphic design/layout One Hour remapping a few keys (the 000 is an annoying key, the capslock on the keypad is non-binding to the host PC, i.e. sent only during other keypresses)
Ok end of post. Sleep much. then I use KB for all sorts of awesome free mousing! (Plays Freebird)

FROM MY NOTES: Keys that didn't make it (out of 20):
Shift (first to go, thx to a 1x2 enter key)
(Thankfully a Sentence Case algorithm exists for post proscessing)

The D/V key (000, sends 0 3x, not it's own code)

The F/Tab key (a caps lock that only sends when another key is pressed, individially un-addressable)

Left over: 13 letter keys (for all 26 letters; cramped a bit but necessary due to losing 2 regular keys) and 4 modifier keys.

So I moved D and V to the bottom right corner keys, and consolidated any symbols duplicated on the keypad like - / & ^ * was lost in the mix, (altho it's not used very often at least) Faced with losing a few orange special key function (such as PgDn Home Delete, i chose Ins, Pause, SysReq(?) and Left(not the arrow key, perhaps a format toggle from Frog people? The I/D/3 key refuses to chord to anything, so I remaped delete (on U/V/^) to do Backspace instead (THE END. Keyboard Done!) PHRASES I TRAINED TYPING:
johnny too bad
horace andy
regggae mus itc feeds the world stage
and weeds tend to them tend to reason
with all these goings oin was not sexyyy or very drunk
Tarzan, King of Mars
Monster Magnetic
Tosca - Wonderful
Valtrex Covalent Bonds
Yammem Mediocracy
i would hold up
when he says we touch too much
Snap Crackle PoP
3 more divas
apple computer
from earth to the moon
gatecrasher iota
jam band
khomeni ayatollah
love actually
macintosh quadra
raffi sectional faciliation
spinal cord injury
ttony hawk isis mmy gooklvalencia
watch the watchmen
wayne gretzky
where the wild things are
one, two, free, four, five, six, seven, eight, nine, ten! satisfied?

Tuesday, June 16, 2009

A Frog with GuyLiner

To complete a reasonable facsimilie of the FrogPad, I Analyzed some photos and layouts, juggling keys to match the pad's promary and secondary (space-shiftwd) memory banks

Also found DataHand, Happy Hacking, Logitech Wave, several XP only USB Roll-Up Keyboards, The Maltron, The Ergo 8000, The Type Matrix (overlaps keypad and features straight key colums...

According to FrogPad, The Most Frequent keys are:

and the Secondary, Lesser used in English keys:

right hand side , to be used left handed.
The left side is a reference for the ALT LAYOUT.

SPACE / ALT / RCLICK / CTRL /SHIFT are going to be set up to emulate the FrogPad's 5 modifier keys
with AUTOHOTKEY (Amazing Keyboard Macro, GUI App Scripting Language)

More later...

QWERTY, Prepare to Die!

The keyboard's over 12 years old and well worn, Still pretty durable. Took several college beer soakings and a ton-o-grime. Flaky FRIK keys. Got a New MS Ergo 4000 USB, and I used both simultaneously for a few days.

I got my trusty small tech screwdriver, needle nose pliers, & cloth and gently pried all the keys out. I set them up in rows like catering, and leftover letters mingled.

Several KEYS have unique shapes (see the 7 for instance and some SPANmultiple keyboard keyhole columns. The MMS Natural spacebar even has a metal wire to steady it.

Some Key caps have seperated from the plastic columns they rest in, by 2 prongs that fit into a 180 split column.
A small needle nose pliers rescues the keyshafts, which then happily snap to the keys.

It's all in the wrist. At this point you can sort and wash the Keys.

Psyched to finally be More In Control, I grouped together PERL, LOST, WFTB, DC, XYZ and displacedF-keys.

T G 7 : odd shaped; not going anywhere
4 2 3 8 1 5 6 : (LOST #s)

( ) : Parentheses on top row
J C Q U G : Together
(Rounded shape letters)

The Right hand side starts with:
PERL, F8, F1 & F5 (LOST Ref)
Totally the reason I wanted to do this.

ADVK : for DVORAK, of course!
+= -_ BkSpc : Pros/Con/TimeTravel
7, H, N : fixed, due to unique shapes
H XYZ <> : Axial Navigation, Hold
< >{ }[ ] : Punct. & HTML/CSS ;':"
I O : Indeed; S : Plural near ENTER
BIOS : Nice Tech Ref

Modifier Keys were/are not interchangable. But almost all the alphanumeric keys moved. The F,R,I &K got flaky on this keyboard.

I hunt and peck with both hands without thinking, and I sure got a Brain-Age-type benefit from "changing my mental map" The keyboard doesn't own me (It's over 12 years old and well worn)

Check out the Numbers model of the "Numeric Keypad,"
NOT FOR USE WITH Hurley's new OSX/XP PC when he returns home. PS/2 Only! Sorry USB Peeps. (Wasn't that an IBM trade mark?)

A 5x3 Matrix +5,
Webbed Feet
A Sharpie,
Computer Case
Screwdriver Set
